OTOFIX D1 Diagnostic Scanner – Professional Wireless Vehicle Diagnostics
OTOFIX D1 is an advanced automotive diagnostic scanner designed for professional workshops and car enthusiasts. The device can read and clear diagnostic trouble codes (DTCs), display live data streams, perform active tests, and provide OE-level diagnostics for multiple vehicle systems.
Combined with the OTOFIX Cloud service, it delivers a complete diagnostic solution from fault detection to repair.
Key Features
- Latest wireless Bluetooth 5.0 diagnostic scanner
- Android 9.0 operating system
- 2GB RAM and 64GB storage
- 5G & 2.4GHz Dual WiFi support
- 5800mAh battery
- CAN FD & DoIP protocol support
- FCA AutoAuth support
- ECU online coding
- 40+ service functions
- Bi-directional control and active tests
- Key programming functions
- Full system diagnostics
- 2 years free software updates
- Coverage for 150+ vehicle brands
ECU Coding & Hidden Features Activation
OTOFIX D1 supports advanced ECU Coding functions including:
- Online Coding for VW / Audi / Skoda
- Offline programming and Variant Coding
- Hidden feature activation
- Adaptive data reset
- Replacement component matching
- OE customization settings
Functions may vary depending on vehicle model and year.
Bi-Directional Control & Active Tests
The scanner allows direct control of various vehicle components:
- Cooling fans
- Injectors
- Valves
- Windows
- Sunroof
- Door systems
- Pumps and actuators
This helps technicians quickly verify component functionality and speed up diagnostics.
40+ Service Functions
Supported maintenance and reset functions include:
- Oil Reset
- EPB
- TPMS
- BMS
- EGR
- DPF Regeneration
- SAS Calibration
- IMMO Functions
- ABS Bleeding
- Injector Coding
- Transmission Adaptation
- Suspension Functions
- Crankshaft Relearn
- Throttle Adaptation
- Power Balance
The function list is continuously expanding.
Full System Diagnostics
Supports diagnostics for:
- Engine system
- Transmission
- ABS
- Airbag system
- Body electronics
- Chassis systems
- Comfort modules and more
AutoVIN & AutoScan
One-click functionality allows:
- Automatic VIN detection
- Full ECU scanning
- Fast fault identification
Vehicle Coverage
Supports more than 150 vehicle brands from 1996 to 2024, including:
- Volkswagen
- Audi
- BMW
- Mercedes-Benz
- Toyota
- Ford
- Hyundai
- Kia
- Chrysler
- Jeep
- Dodge
- Fiat and many others
Real-Time Data Monitoring
View live vehicle data in multiple formats:
- Graphs
- Digital values
- Waveforms
- Text displays
Data can also be saved for later analysis.
Technical Specifications
- Processor: 4x ARM Cortex-A35 1.5GHz
- Operating System: Android 9.0
- RAM: 2GB
- Storage: 64GB
- Display: 7” LCD touchscreen
- Resolution: 1280×800
- Battery: 5800mAh
- Camera: 8MP
- Connectivity: USB Type-C / Bluetooth
- Working Temperature: 0°C – 45°C

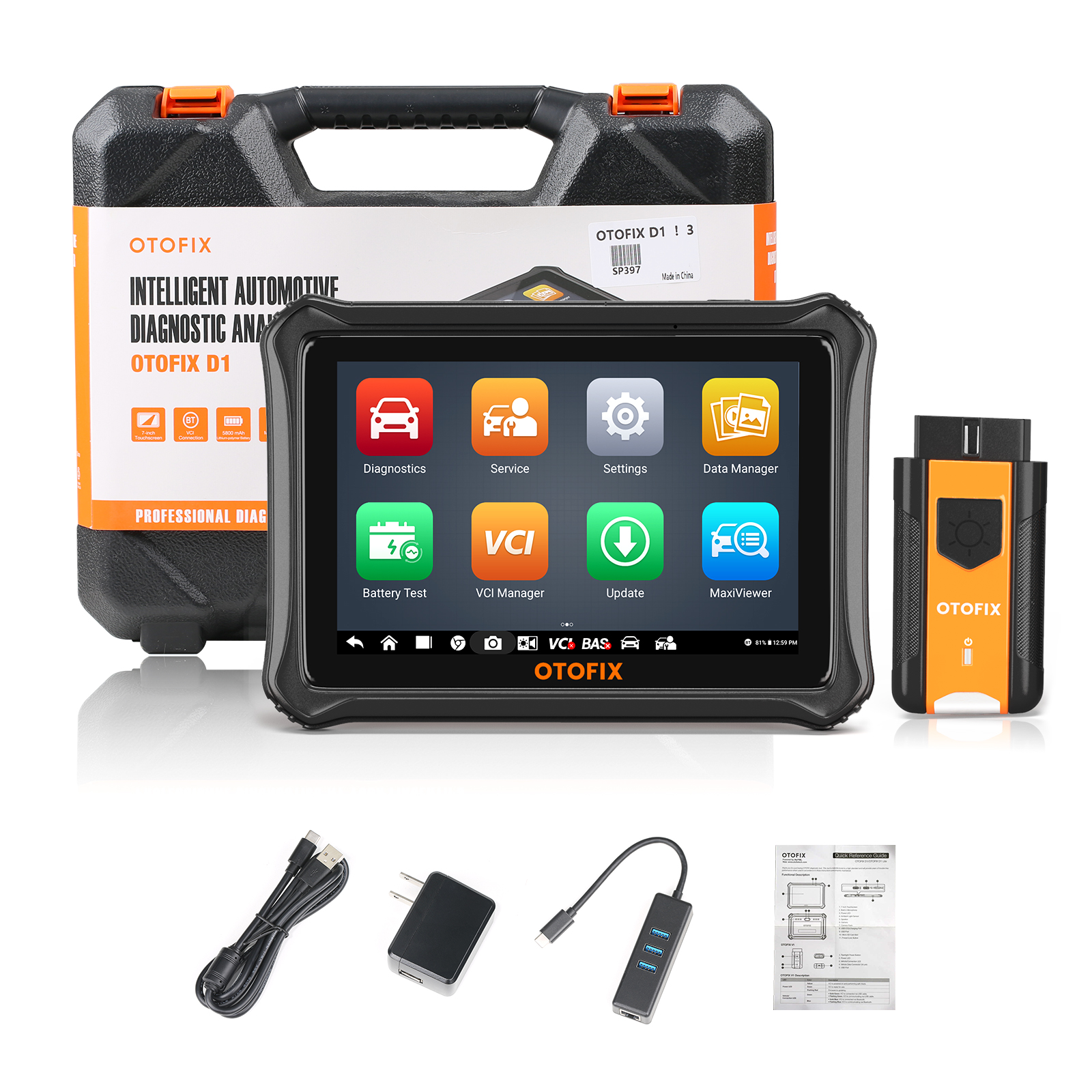

Package Includes
- OTOFIX D1 Main Unit
- OTOFIX V1 VCI Module
- Power Adapter
- USB Type-C Cable
- USB to Ethernet Adapter
- Carrying Case
- Quick Reference Guide
- Packing List
Warranty 2 years. Free updates 2 years.
