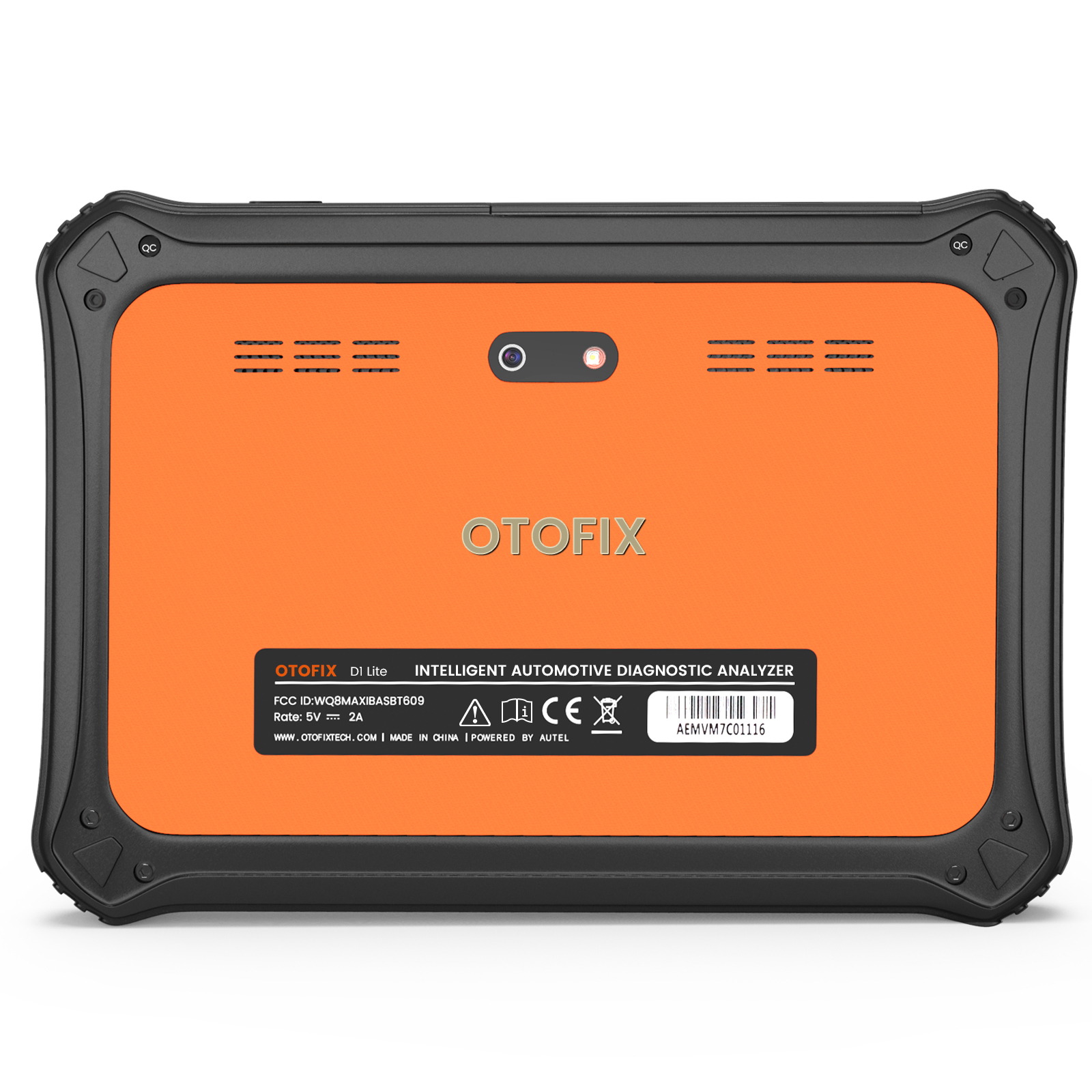

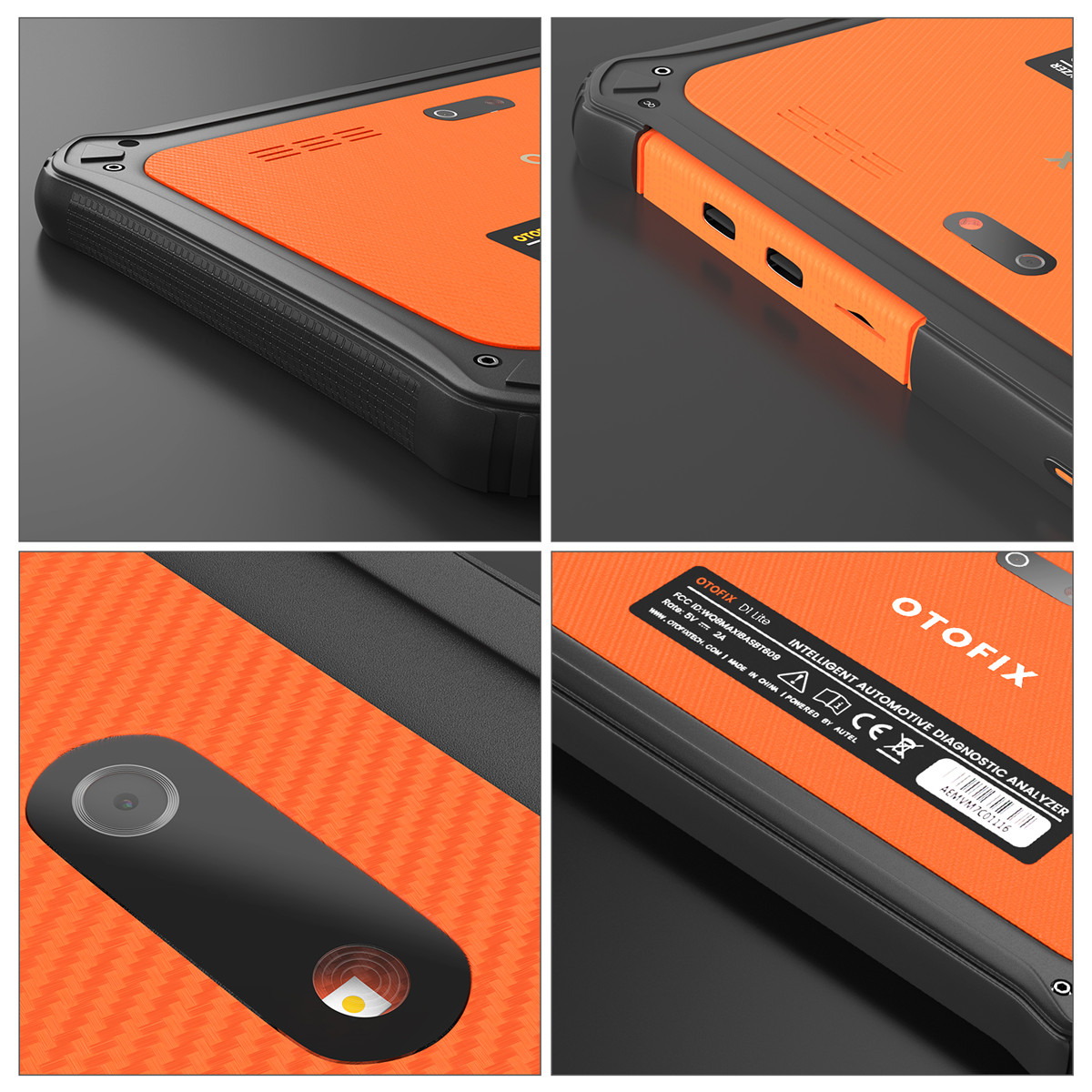

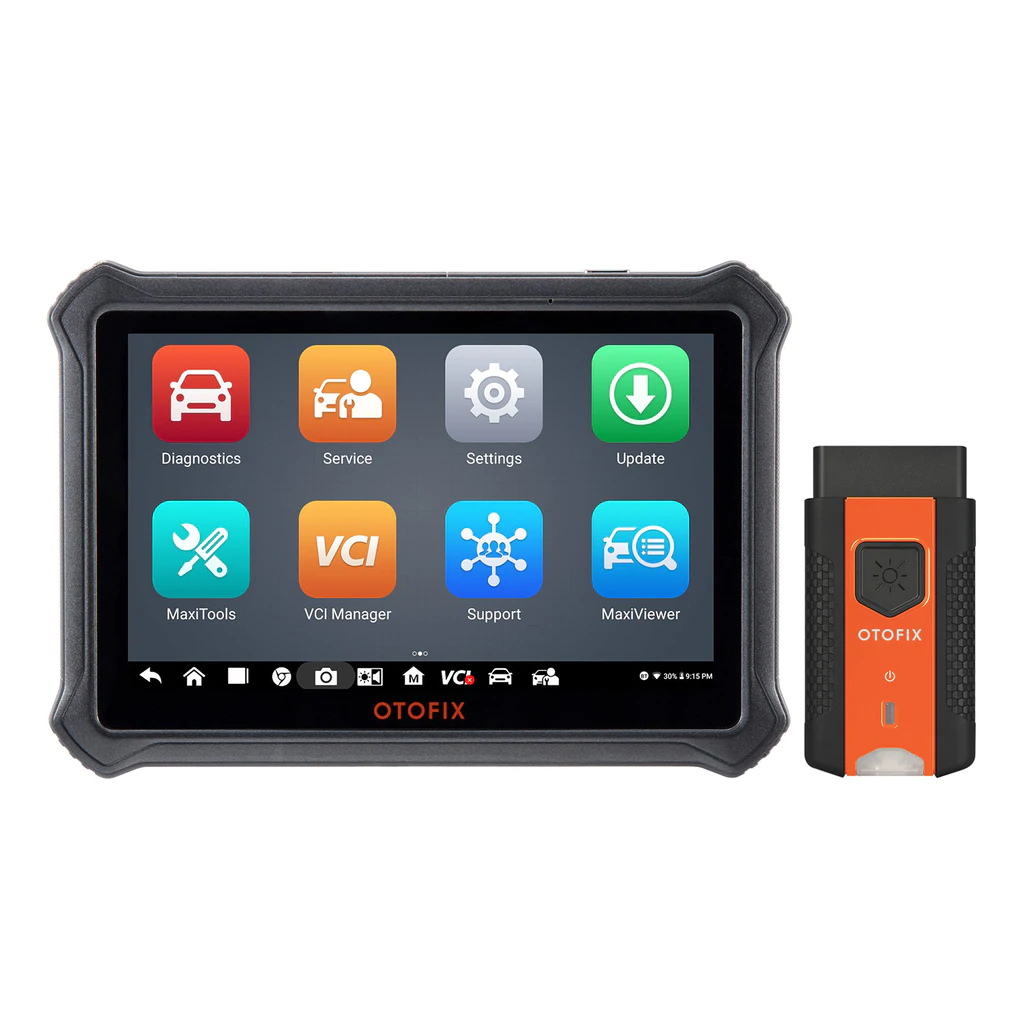

OTOFIX D1 LITE Universal Diagnostic Tool

Otofix D1 Lite Diagnostic Tool

Otofix D1 Lite is the core model of the Otofix brand, designed for complete vehicle diagnostics and a wide range of service functions. It is compatible with most European, Asian, and American vehicles from 1996 up to 2025, supports even older models, and can connect to nearly all control modules.

With this device, you can perform full diagnostics – from the engine control unit to transmission, ABS, airbags, instrument cluster, and other electronic systems. In addition, it offers more than 38 service functions, including DPF regeneration, throttle body adaptation, transmission reset, TPMS diagnostics, injector coding, key programming, and much more.

The package includes a wireless diagnostic adapter, and the device comes with 2 years of free software updates.

Main Features

• Full-system diagnostics across all modules

• Reading and clearing fault codes

• Live data monitoring

• Active tests

• Over 38 service functions, such as:

  • Service interval reset

  • ABS bleeding

  • Injector coding

  • Transmission adaptation reset

  • Battery registration

  • Electronic parking brake operation

  • Suspension calibration

  • DPF/GPF regeneration and replacement

  • Start-stop system reset

  • NOx and lambda sensor tests

  • AdBlue system reset

OBD-II Functions

• Reads and clears engine fault codes (P0, P2, P3, U0, plus manufacturer-specific codes)

• Emission system checks (MIL)

• I/M readiness test

• Live engine data and freeze frame capture

• EVAP system test & battery test

• VIN/CVN identification

• Supports all major OBD-II protocols: CAN, ISO9141, KWP2000, J1850 VPW, J1850 PWM

Why Choose Otofix D1 Lite?

• Performs both standard and advanced diagnostics

• Supports more than 38 service procedures

• Compatible with most cars (1996–2025)

• Includes 24 months of free updates

• Supports CAN-FD and DoIP protocols

• Connects to FCA vehicles with SGW protection and unlocks SFD on VAG models

Supported Brands

European: Audi, BMW, Mercedes, Volkswagen, Volvo, Peugeot, Renault, Porsche, Land Rover, Jaguar, Opel, Fiat, Citroën, Skoda, Seat, Alfa Romeo, Ferrari, Maserati, Rolls Royce, and more.
American: GM, Ford, Jeep, Dodge, Cadillac, Chevrolet, Lincoln, Buick, Tesla* (*requires extra license).
Asian: Toyota, Lexus, Honda, Nissan, Mazda, Hyundai, Kia, Mitsubishi, Subaru, Suzuki, Isuzu, SsangYong, Tata, Vinfast, and many others including Chinese brands.

Technical Specifications

• Operating system: Android 9.0

• Memory: 2 GB RAM / 64 GB storage

• Display: 7" touchscreen, 1280 × 800 resolution

• Working temperature: 0–50 °C

• Storage temperature: –20 – 60 °C

• Humidity: 5–95% (non-condensing)

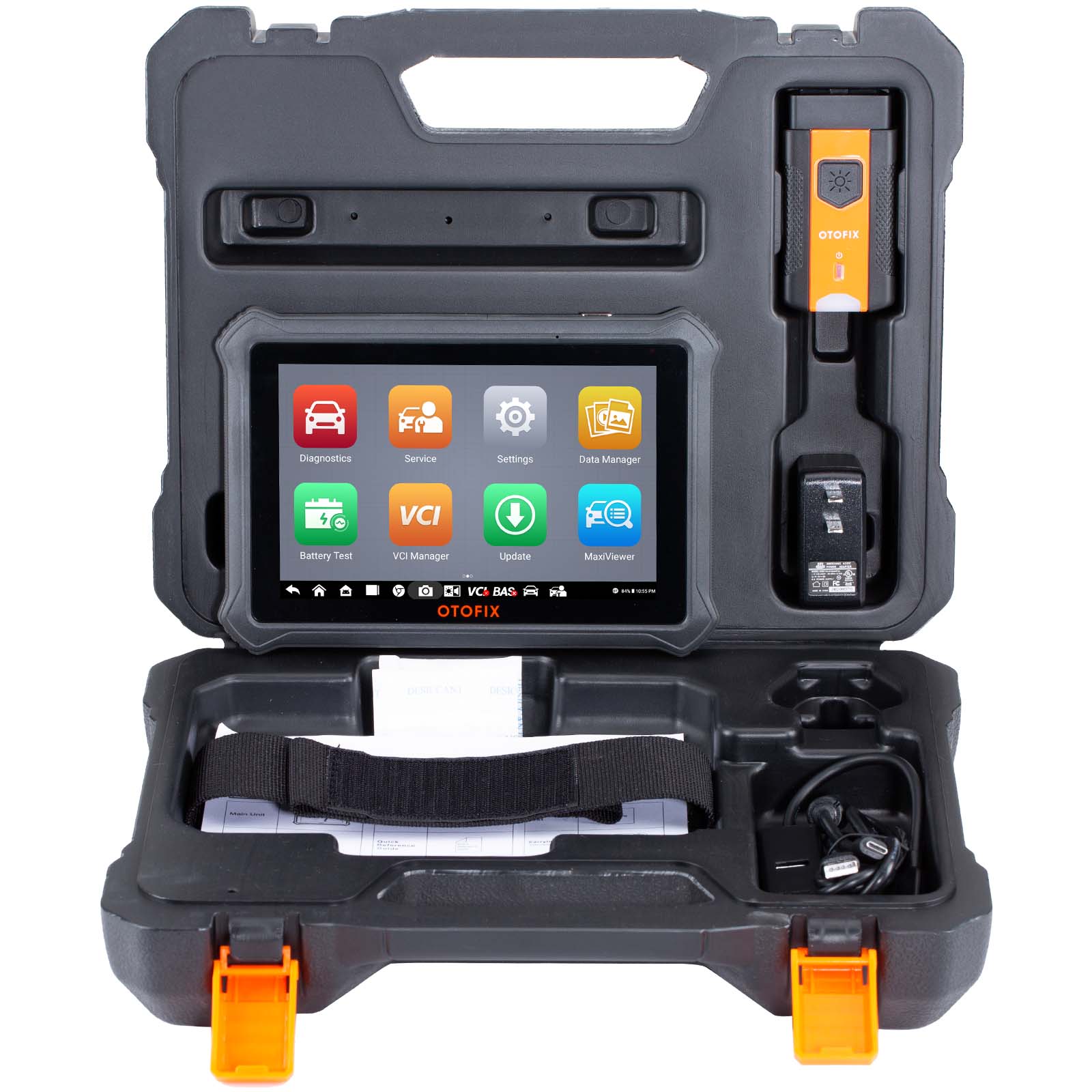

Package Contents

• Otofix D1 Lite device

• Wireless diagnostic adapter

• USB cable

• Power adapter

• Carrying case

• User manual (EN)
