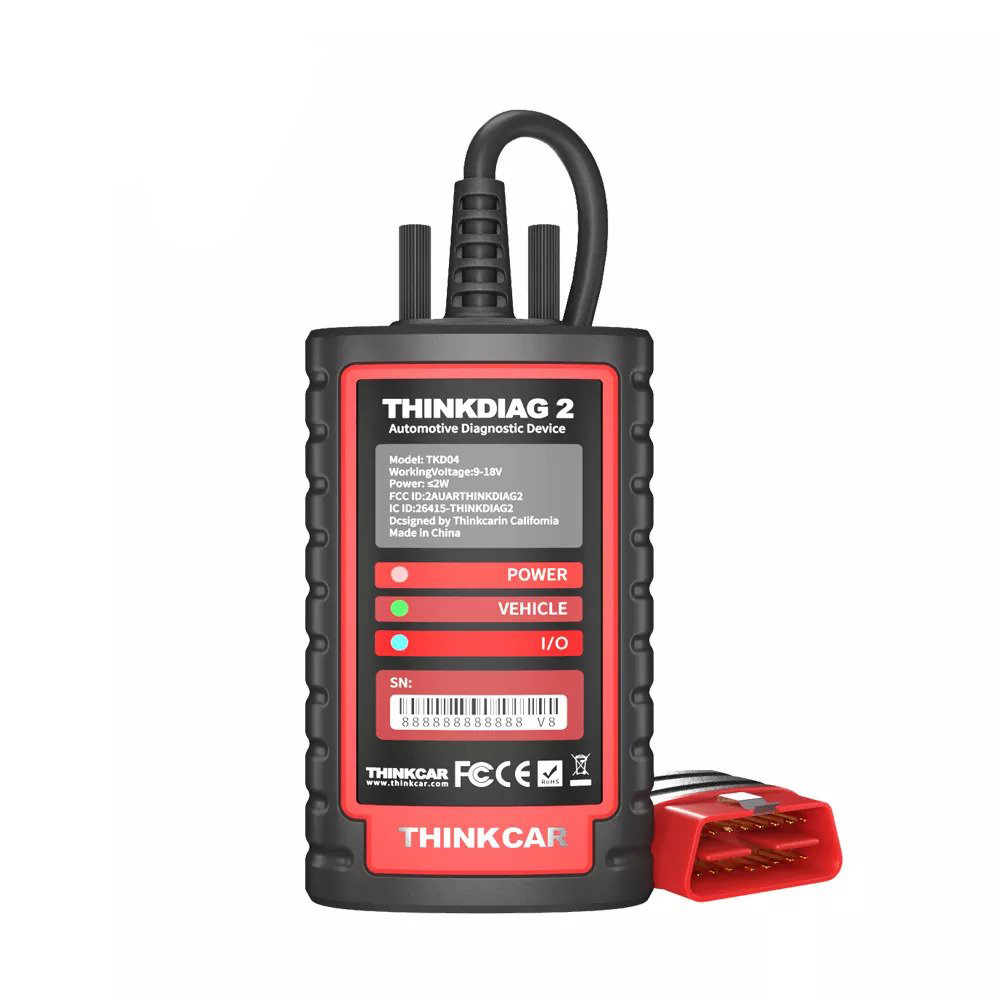

ThinkCar ThinkDiag 2 universal diagnostic tool

ThinkCar ThinkDiag 2 universal diagnostic tool. This device works with all car systems and supports all service functions, as well as special car modification functions (coding, adaptations). The main differences between the 1st generation device and this one - the CAN-FD protocol is supported, it supports slightly more car brands, and the device has become several times faster.

Reset functions

• Oil change warning reset;
• Steering angle calibration;
• Electronic parking brake reset;
• Battery registration and maintenance;
• ABS swallowing;
• Electronic throttle position adjustment;
• Diesel particulate filter (DPF) regeneration;
• Setting up the tire pressure monitoring system;
• Protection against theft;
• Coding of nozzles;
• Air suspension rebuild;
• Gearbox calibration;
• Skylight calibration;
• AFS reset;
• EGR reset;

Specification

• Car support: 1996 - 2022 (and newer).
• Type of connection to the car: OBDII.
• Operation using Bluetooth technology.
• Device Version: v2, Bluetooth v5.0.
• Software language: English, Russian, Spanish, French, German, Italian, Portuguese and others.
• Supported operating system: Android, Apple IOS.

Supported car models

• 123 car brands (TESLA license purchased separately)

Supported protocols

• CAN-FD (New!)
• ISO14230-4 (KWP2000).
• ISO15765-4 (CAN).
• ISO9141-2.
• ISO14229 (UDS).
• SAE J1850 (VPW and PWM).

The equipment includes a 1-year unlimited license for all cars (apart from TESLA) and service functions.

The device works with Android and iOS operating systems.

Complete set

1 pc. x ThinkCar ThinkDiag 2 diagnostic device with box;
1pc x 1 PRO/upgrades license;
1 pc. x User manual;

Warranty 24 months
