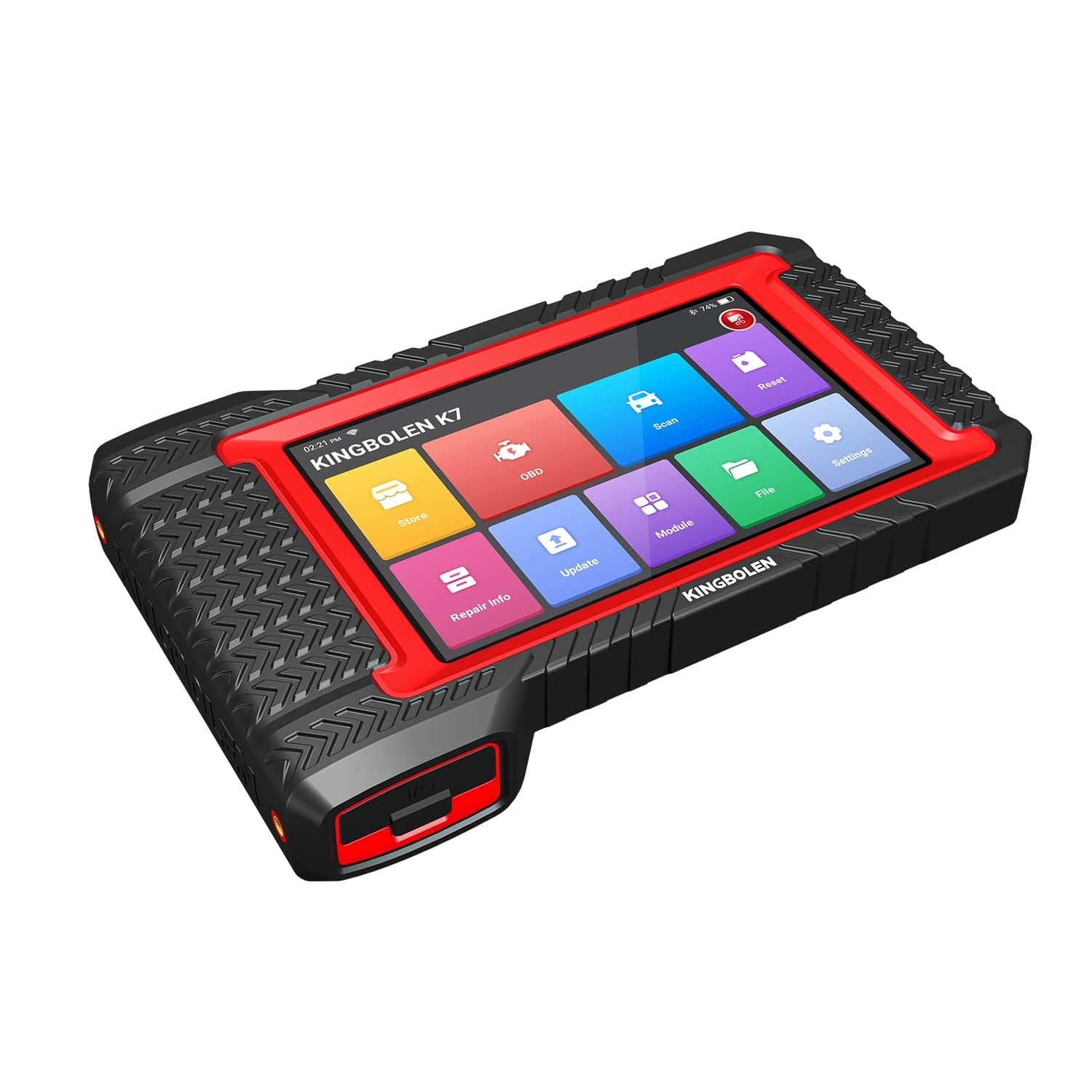

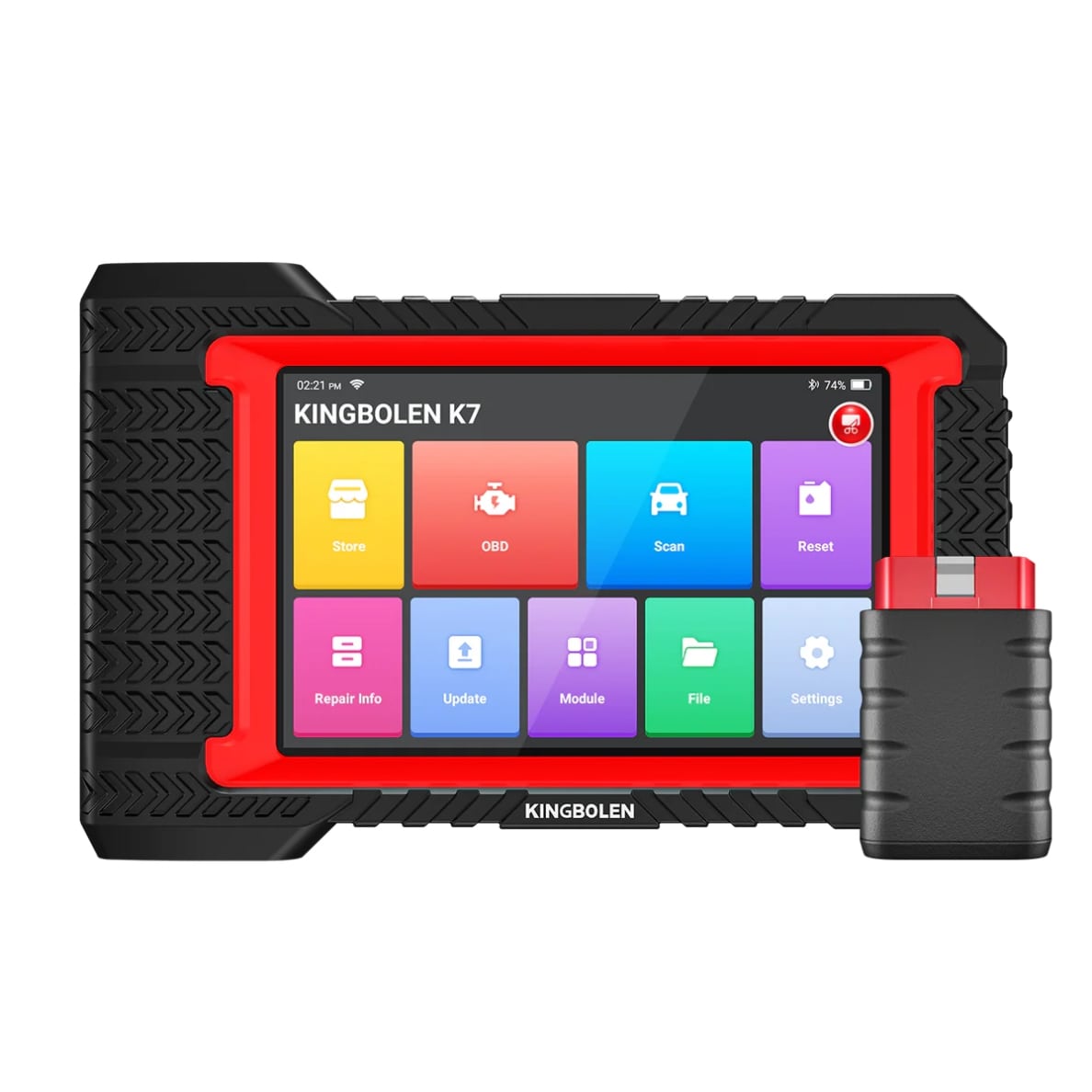

KINGBOLEN K7 univers diagnostic tool

The KINGBOLEN K7 is a powerful, professional-grade diagnostic scanner designed to detect, diagnose, and clear faults across over 150 global car brands (from 1996 and newer). With free lifetime updates, this device guarantees long-term value and relevance for any workshop or serious mechanic.

Extensive Vehicle Coverage

The K7 covers all major automotive manufacturers from the Americas (Ford, GM, Chevrolet), Asia (Toyota, Honda, Hyundai, Lexus, Nissan), and Europe (BMW, Mercedes-Benz, Audi, VW, Volvo, Peugeot, Renault, Porsche, and more).

In-Depth All-Systems Diagnostics

The device allows for deep diagnosis of all electronic systems in the vehicle, including:

• Engine

• Transmission

• ABS

• SRS (Airbag)

• EPB (Electronic Parking Brake)

• BMS

• TPMS

• Suspension, Steering, Climate Control, Body Control, and more.

Core Diagnostic Functions:

1. Read / Clear DTCs: Quick detection and clearing of fault codes.

2. Live Data: Real-time parameter monitoring in text, graphical, or 4-parameter comparison mode.

3. Freeze Frame: Snapshot of data at the moment a fault occurs, helping to pinpoint the exact cause.

4. ECU Information Reading: Review of control unit types, versions, and other details.

5. Auto VIN: Automatic vehicle identification (make, model, year).

31 Service and Reset Functions

The KINGBOLEN K7 supports 31 essential service functions required after repair and maintenance. Among the most popular are:

• Oil Reset

• Steering Angle Sensor (SAS Reset)

• Injector Coding

• ABS Bleeding

• Battery Management System (BMS Reset)

• EPB Reset

• Throttle Matching

• Airbag (SRS Reset)

• AdBlue Reset

• As well as TPMS, Gear Adaptation, Crank/Camshaft Synchronization, AFS Calibration, and others.

Bi-Directional Control and ECU Coding

Bi-directional Control (Active Test): The K7 allows you to perform component tests by sending commands directly to the vehicle's ECU. This enables checking various actuators—such as the A/C clutch, fuel injectors, ABS pump, fans, solenoids, windows, doors, and EVAP system valves—without physical disassembly.

ECU Coding: The ability to activate or deactivate hidden features and personalize the car. For example, disabling the seat belt chime, managing automatic "Start-Stop" functionality, setting up automatic mirror folding, or modifying locking/unlocking functions. Note: Coding support varies by model. The device does not perform ECU programming.

Advanced Additional Capabilities

• FCA AutoAuth (SGW Unlock): The device supports AutoAuth login, allowing you to unlock the protected Security Gateway (SGW) module in Chrysler, Jeep, Dodge, Fiat, and Alfa Romeo vehicles for diagnostics. User registration with AutoAuth is required.

• Manufacturer-Specific Special Functions: Includes Component Matching (VW, BMW, Ford), Online Coding (VW, Audi, Mercedes-Benz), Online Account Login / Calibration / Parameterization (VW Group models), PMI (Ford, Mazda), and Power Balance tests (Ford, GM).

Technical Specifications

The KINGBOLEN K7 runs on a powerful Android 10.0 operating system with a 4-core, 1.8 GHz processor.

• Screen: 7-inch touchscreen display.

• Memory: 2 GB RAM and 32 GB internal storage.

• Battery: 6000 mAh.

• Connectivity: Dual-band Wi-Fi (2.4 / 5.0 GHz) and Bluetooth.

• Updates: Free lifetime updates.

• Supported Languages: 18.

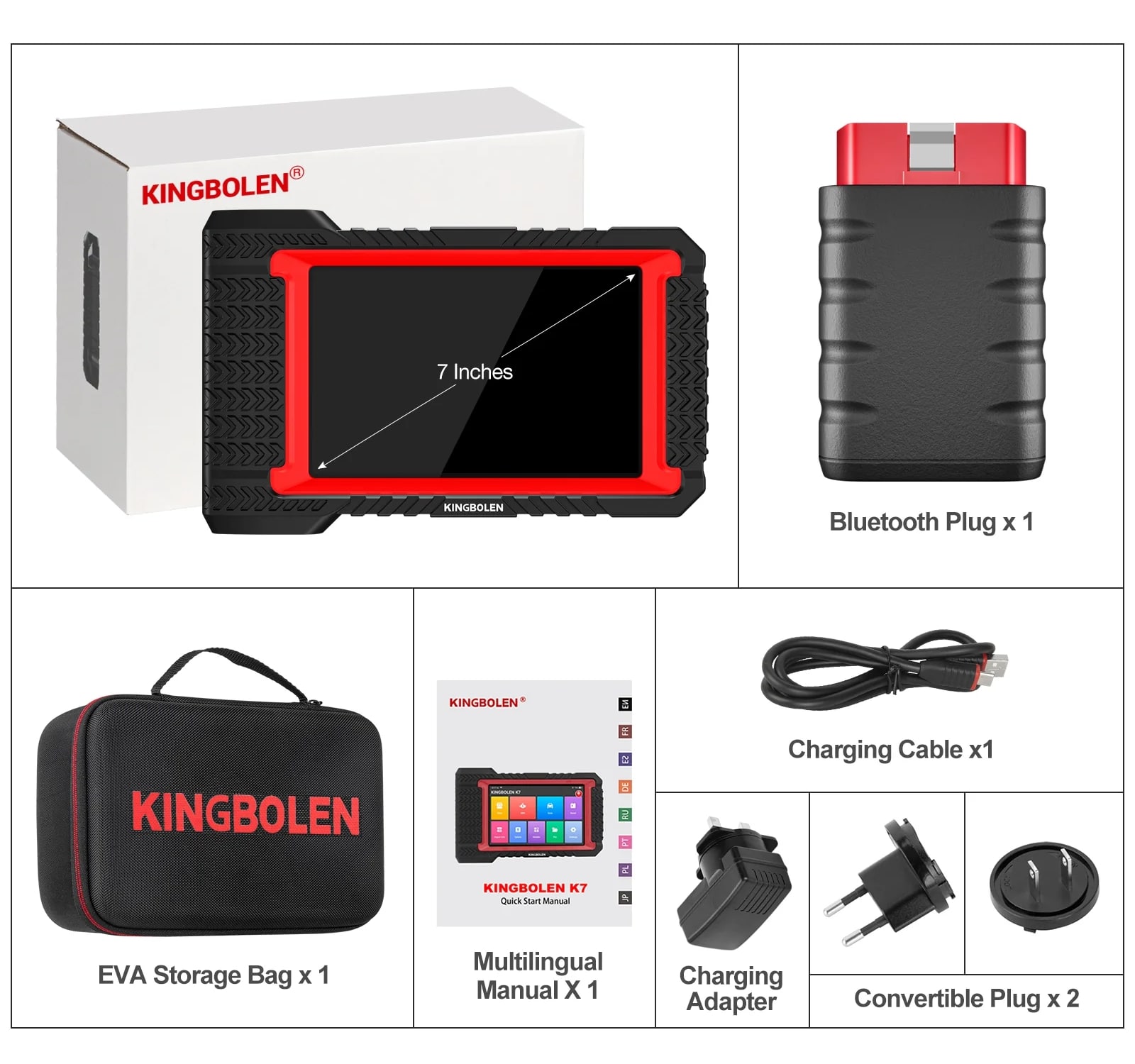

What's Included: KINGBOLEN K7 device, VCI diagnostic connector, USB cable, user manual, protective carrying case.
