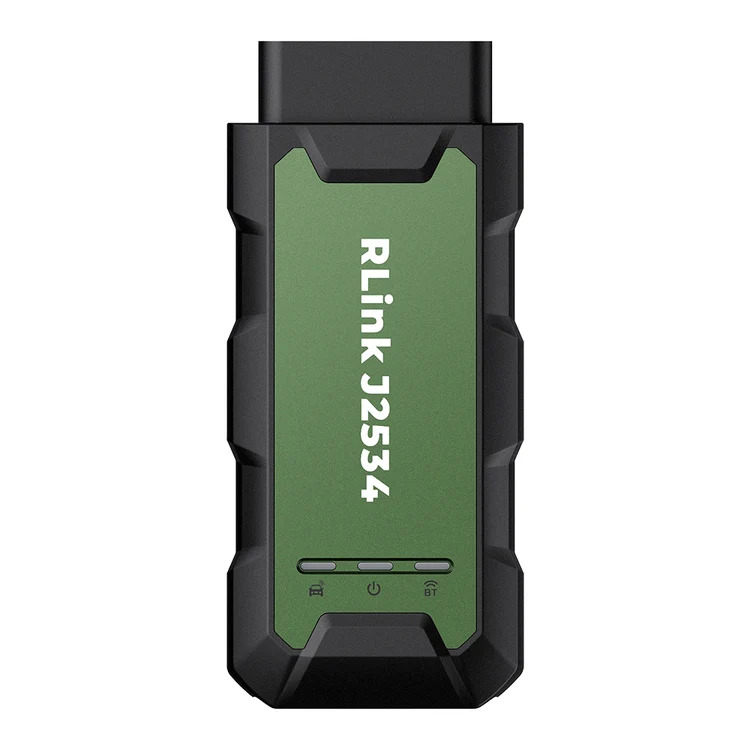

TOPDON RLink J2534 Diagnostic and ECU Programming Interface

The TOPDON RLink J2534 is a professional wired diagnostic and ECU programming interface designed for use with original vehicle manufacturer software. Supporting J2534 Pass-Thru, D-PDU, CAN FD and DoIP standards, it provides extensive compatibility with modern vehicle electronic systems.

When used with the appropriate OEM software, the RLink J2534 can perform all-system diagnostics, ECU programming, coding, module configuration, maintenance functions and other manufacturer-supported procedures.

Main TOPDON RLink J2534 Features

J2534 Pass-Thru Programming

The RLink J2534 supports all major J2534 protocols required for OEM diagnostics and electronic control unit reprogramming.

Support for D-PDU, CAN FD and DoIP protocols makes the interface suitable for newer vehicles and advanced electronic architectures.

Extensive Vehicle Brand Coverage

The interface is compatible with OEM software from more than 13 leading automotive manufacturers:

• Toyota and Lexus
• Honda and Acura
• Nissan and Infiniti
• Ford
• General Motors
• Chrysler, Dodge, Jeep and RAM
• Subaru
• Volvo
• Jaguar and Land Rover
• Volkswagen, Audi, Škoda and SEAT
• Mercedes-Benz
• BMW and MINI
• SGMW / Wuling

Compatibility covers a wide range of vehicle models and electronic control systems.

OEM-Level Diagnostic Capabilities

When connected to compatible OEM software, the RLink J2534 may provide access to the following functions, depending on the vehicle and software being used:

• Complete all-system diagnostics
• Reading and clearing diagnostic trouble codes
• ECU programming and software updates
• Control unit coding and configuration
• Adaptations and calibrations
• Maintenance and service reset functions
• Manufacturer diagnostic and repair procedures
• OEM-supported online or cloud-based programming

Please note: OEM diagnostic software, licences and subscriptions are not included with the product. They must be purchased separately from the relevant vehicle manufacturer or an authorised software provider.

TOPDON RLink Platform

The TOPDON RLink Platform includes an integrated DMS Driver Management System, allowing users to download and install the latest interface and OEM software communication drivers.

RLink interface software and driver updates are supplied free of charge for the lifetime of the device.

One-Click Driver Installation

There is no need to manually search for individual drivers. Required drivers can be downloaded and installed directly through the RLink Platform with a single click.

The platform also provides OEM software operation guides to simplify installation and help users prepare the interface for diagnostic work.

Stable Wired Connection

The wired USB connection provides fast, stable data transfer with reduced latency and minimal risk of communication interruptions. Reliable communication is especially important during ECU programming, where a lost connection may damage the control unit software.

Proven Reliability

According to TOPDON, the RLink J2534 has been tested on more than 10,000 real vehicles. Its durable construction and stable performance make it suitable for both everyday diagnostic work and complex ECU programming procedures.

Professional Technical Support

TOPDON’s technical support team can assist with installation, configuration, software compatibility and troubleshooting, helping workshops minimise downtime.

Compact and Lightweight Design

The RLink J2534 is compact enough to fit into a pocket or toolbox. Its durable housing is designed to withstand the demands of everyday workshop use.

Windows Compatibility

The RLink J2534 supports the following 64-bit operating systems:

• Windows 7 64-bit
• Windows 8 64-bit
• Windows 10 64-bit
• Windows 11 64-bit

Before installing specific OEM software, always check the official computer and operating system requirements published by the vehicle manufacturer.

Supported OEM Software

• Toyota / Lexus: Techstream, GTS+
• Honda / Acura: HDS, iHDS
• Nissan / Infiniti: CONSULT-III Plus R2R
• Ford: FORScan, FDRS, FJDS
• GM: GDS2, TLC, DPS, Tech2Win
• Chrysler / Dodge / Jeep / RAM: wiTECH 2
• Subaru: SSM4
• SGMW / Wuling: VDS2
• Volvo: VIDA 2014, VIDA
• Jaguar / Land Rover: SDD
• Volkswagen / Audi: ODIS-S, ODIS-E
• Mercedes-Benz: Xentry PassThru
• BMW / MINI: ISTA+ PassThru

Available functions may vary depending on the vehicle model, model year, market, OEM software version and active manufacturer licence.

Technical Specifications

• Operating voltage: 9–18 V
• Operating temperature: –10 °C to +50 °C (14 °F to 122 °F)
• Storage temperature: –20 °C to +70 °C (–4 °F to 158 °F)
• Dimensions: 114.7 × 51 × 29 mm (4.51 × 2 × 1.14 in)
• Net weight: 90 g (3.17 oz)
• Connection: wired USB
• Supported standards: J2534, D-PDU, CAN FD and DoIP
• Supported operating systems: 64-bit Windows 7, 8, 10 and 11

Package Contents

• TOPDON RLink J2534 interface × 1
• 0.38 m / 1.2 ft OBDII extension cable × 1
• 2 m / 6.6 ft USB 2.0 cable × 1
• Quick start guide × 1
